How To Eliminate Clicking

A Common Problem for Software Synthesizers



Clicking results from starting a waveform in mid-cycle creating an abrupt change in amplitude from one sample to the next. Many software synth’s have the “clicking” problem because they do not take steps to eliminate it.

Clicking also happens when any modulation which effects the waveform passes through the vertical edge of an envelope while the oscillator is in mid-cycle.

Fathom contains real time logic which virtually eliminates clicking in order to create perfectly smooth oscillator note transitions and modulations.

Even when running multiple detuned oscillators, our audio processor keeps real-time track of the relative phase of each oscillator, and at the start of each note plays each oscillator virtually with no volume for a few microseconds until the beginning of its waveform.

Conversely it does the same when ending a note and will play each voice to the end of its current waveform. In this way all detuned voices maintain their relative phase but never start in the middle of a waveform.




Alias Free Oscillators



Many synthesizers are advertised as alias free.

Place a spectrum analyzer on the plugin track in your host and you discover that the frequency content gradually tapers off into the upper frequencies. This is proof that your synth is using aliased waveform functions, internally filtering the oscillator to remove the aliasing, and then calling it “alias free”.

We believe this is false advertising. For an oscillator to be called alias free it must be created from component partials or sin waves, generating a waveform that is free of aliasing to begin with.

Filtering should be your choice, not built into your oscillators.

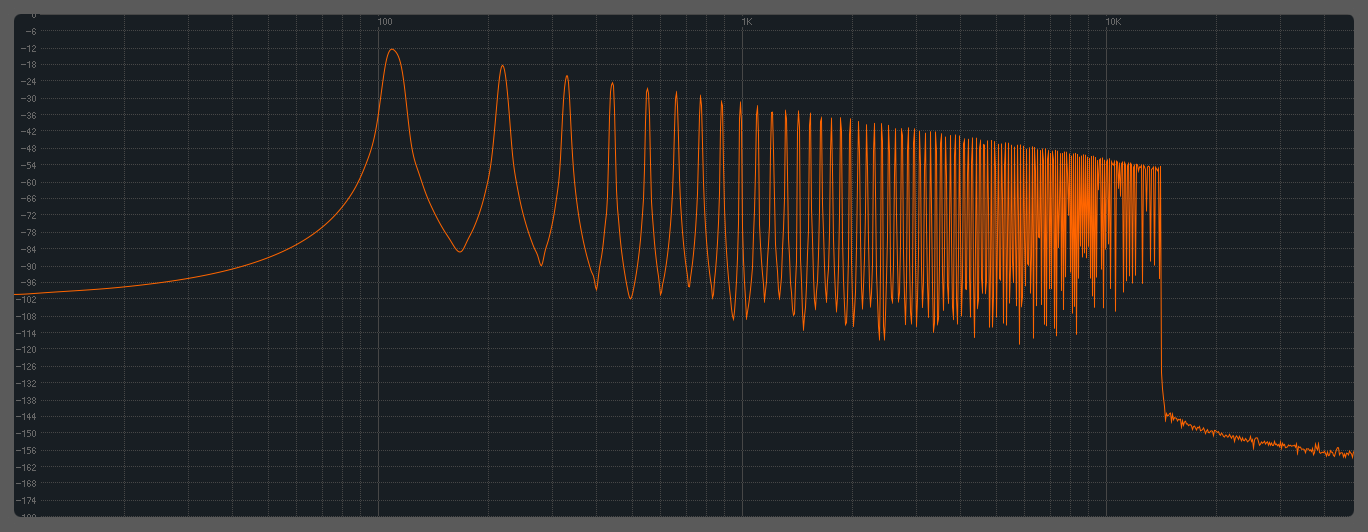

Shown above is an unedited screen capture of the Fathom Saw Tooth at 32 partials in the frequency domain. Our saw tooth has a high frequency noise floor of less than -144 dB. or less than a factor of 0.0000001 in relation to the amplitude.

We achieve this by constructing our waveforms from partials and additionally using massive buffers of 16384 samples for each oscillator single cycle, along with run-time table extrapolation between points. This is also true for the waveforms you create yourself.

In addition, you can control the number of partials as well as modulate it.




Smooth Note Transitions



Shown above is a screen capture of a Fathom note transition with a single oscillator sin wave and detune set to one voice in free running mode. If a sequencer note stops and a new one starts at the same point in the host sequence, Fathom will make the frequency transition in mid-cycle, emulating a single oscillator hardware synth, even when running in polyphonic mode.





Above is a Fathom note transition, single oscillator sin wave, with detune set to eight voices in retrigger mode. All voices finish their cycle in the terminating note and start at the beginning of their cycle in the new note.




Single oscillator sin wave, detune 8 voices, free running mode, polyphonic.



Single oscillator sin wave, detune 8 voices, free running mode, monophonic with gilde.
